BirdDog Eyes P200 NDI PTZ Camera

The BirdDog Eyes P200 is a full-NDI capable PTZ camera that can transmit 140 Mbps 1080/60p video from its Sony backlit sensor. Key features include:

• Sony 1/2.8″ backlit CMOS sensor with 2.13 MP

• 30x optical zoom with a 4.3mm to 129mm focal length

• Simultaneous full NDI, SDI, HDMI, and CVBS outputs

• Maximum 1080/60p resolution at a 140 Mbps bitrate via full NDI streaming

Full-NDI PTZ Camera. The BirDog Eyes P200 is a remote controlled PTZ camera that uses the NewTek NDI protocol for 140 Mbps video over IP. Resolution peaks at 1920 × 1080 with a frame rate of up to 60 fps. For imaging, the P200 uses a 2.13 MP, 1/2.8″, Sony backlit CMOS sensor.

Control & Switching Options. NDI cameras can be controlled with a variety of software and hardware. We recommend NewTek’s as a starting point for free, software-based NDI control. For simple PTZ control over RS232, we recommend the . The BirdDog PTZ Keyboard will need to be updated to v4.5.203-LTS in order to work with this camera, and the P200 will need to be updated to v4.5.3414-LTS, but all copies will be fully updated before shipment.

Integrated 30x Zoom Lens. The Bird Dog P200 features a 30x optical zoom lens that will reach from 4.3mm to 129mm. The lens can be moved at up to 150°/s with a 350° pan and 30 to 90° tilt range.

Power Over Ethernet. This camera is capable of utilizing PoE from compatible network switches, but can also be powered by the included AC adapter.

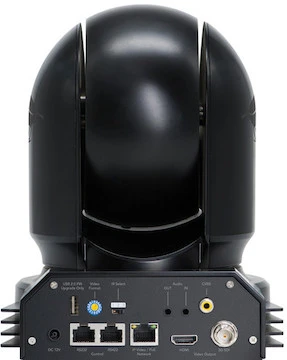

Inputs & Outputs. The camera uses an RJ45 ethernet port for NDI, but also features simultaneous video output via SDI, HDMI, and CVBS. Audio input and output is available with two 1/8″ (3.5mm) ports.
