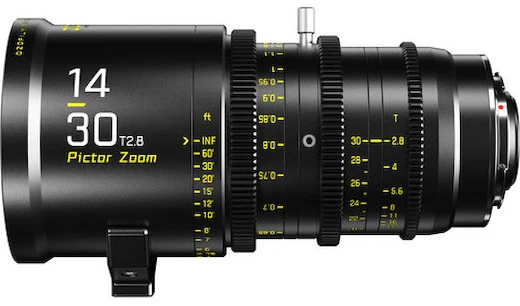

The DZOFilm Pictor 14-30mm T2.8 Parfocal Zoom (EF) is a reasonably fast parfocal cine zoom for Canon EF-mount cameras and camcorders. It covers a Super 35 image circle. Key features include:
-
Maintains focus throughout the zoom range
-
Near-zero focus breathing
-
High-quality cine build with geared focus and zoom rings
-
Sixteen-blade aperture diaphragm
Versatile Parfocal Cine Zoom. The DZOFilm Pictor 14-30mm T2.8 Parfocal Zoom (EF) provides a wide to extreme wide-angle zoom range that makes it a versatile cine lens. Its sixteen-blade aperture produces round, extremely pleasing bokeh, and its parfocal design means it holds focus throughout its zoom range. Its internal-focusing floating-elements construction all but eliminates focus breathing.
Cinema Design. The 14-30mm T2.8ās aperture and focusing rings boast standard 0.8 mod gears so that you can easily install a follow-focus system. Its 95mm front diameter lets you use standard matte boxes, and thereās an 86mm filter thread to boot. The included lens-support foot helps reduce strain on your cameraās lens port by using the lens with rods.
Please Note: This rental includes an attached 3/8-16″ threaded support foot, but we recommend you provide additional support by using either a or a in conjunction with a baseplate and rail system. If you have any questions please donāt hesitate to .
| Aperture Blades |
16 |
| Autofocus |
Manual Focus Only |
| Brand |
DZOFilm |
| Compatibility |
Crop |
| Coverage |
Super35/APS-C |
| Electronic Communication |
No |
| Filter Size |
86.0mm |
| Focal Length |
14.0-30.0 |
| Focus Rotation |
270° |
| Focus Scales |
Imperial |
| Front Lens Diameter |
95mm |
| Gear Mod and Pitch |
Focus: 0.8 MOD / 32 Pitch |
| Groups/Elements |
17/21 |
| Hood Included |
No |
| Image Circle |
31.1mm |
| Image Stabilization |
No |
| Iris Rotation |
61° |
| Item Type |
Lens |
| Length |
6.8″ |
| Lens Support |
Lens Support Foot |
| Lens Type |
Cine |
| Max Aperture |
2.8 |
| Mfr. Model Number |
DZO-7220003B |
| Minimum Aperture |
22.0 |
| Minimum Focusing Distance |
2.0feet |
| Mount |
Canon EF |
| System |
Canon |
| Weight |
4.1 lbs. |
| Zoom Ratio |
2.14x |
| Zoom Rotation |
100° |
