The TASCAM DR-70D is a hybrid field mixer/recorder. Key features include:
-
Four XLR / TRS inputs.
-
Built-in stereo mic.
-
Rear controls.
-
Batteries not included.

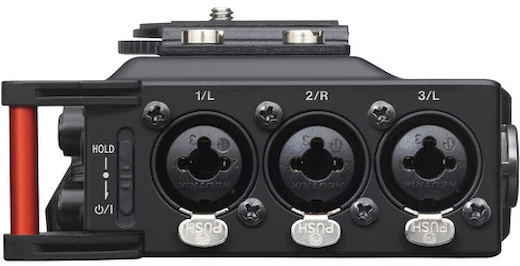

Four XLR / TRS Combo Inputs. This recorder/mixer sets itself apart from the competition by offering both XLR and TRS (1/4″ / 3.5mm) inputs for all channels.

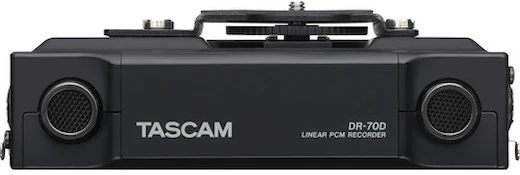

Built-in Microphones. No mic? No problem, the DR-70D’s inegrated stereo mics ensure you’ll never have to go without great audio.

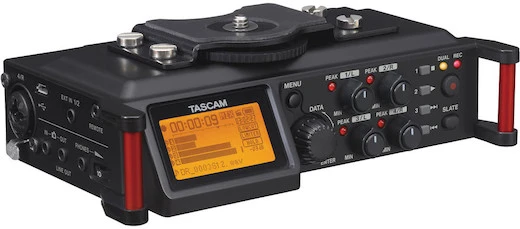

Rear Control. The display and most important controls are all located on the back, keeping you behind the camera and focused on shooting.
Power. The DR-70D uses (not included).
| Audio Type |
Other Audio, XLR Adapters, Other Audio, and XLR Adapters |
| Battery | Compatibility
Life
|
| Brand |
TASCAM |
| Dimensions |
6.65 × 2.2 × 4.2″ (169 × 55.2 × 106.5 mm) |
| Input Level |
Mic/Mic + Phantom Power: 0 dBu standard, -72 dBu maximum and Line: +4 dBu standard, +20 dBu maximum |
| Inputs/Outputs |
Audio Inputs
Audio Output
|
| Item Type |
Audio |
| Maximum Input Level |
+6 dBV |
| Memory Type |
up to 128GB |
| Phantom Power |
12V /24V /+48V |
| Power Requirements |
AA size (LR6) battery x 4 |
| Recording Formats |
WAV, BWF |
| Sample Rate |
44.1-96 kHz |
| USB Port |
Mass Storage Class operation and Audio Interface operation, multi-track mode: multi-track or stereo modes |
| Weight |
1.37 lb (625 g) |
