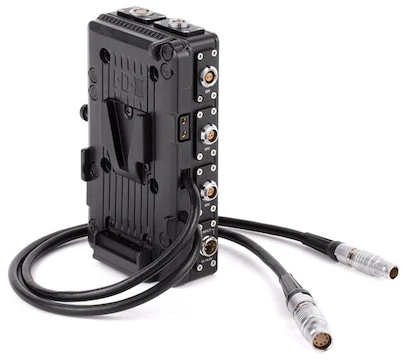

Wooden ALEXA Mini V-Mount D-Box Battery Plate

The Wooden ALEXA Mini V-Mount D-Box is a rail mounted V-Mount battery plate and power distribution system customized for the , and only the ALEXA Mini. Key features include:

• Works with the ARRI ALEXA Mini

• 2-pin LEMO, 12V & 3-pin Fischer, 24V power ports

• Accepts V-Mount batteries

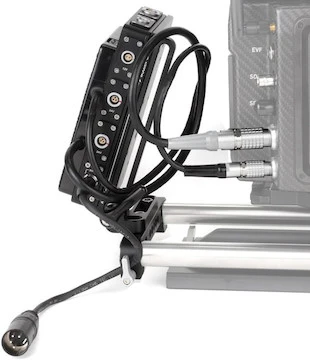

• Wooden 15mm LWS spaced rod clamp included (rental only)

V-Mount Power. The Wooden ALEXA Mini V-Mount D-Box features an authentic IDX V-Mount battery plate with a single, unregulated hard wired D-Tap port. Please note, batteries and chargers are not included but can be rented separately .

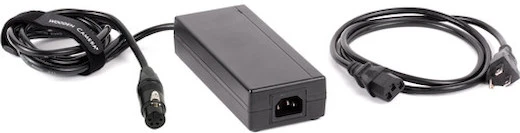

AC Adapter Included. In addition to the battery option, this D-Box can be powered by the supplied 4-pin XLR adapter (rental only). Use of this adapter allows batteries to be hot swapped during the course of a long shot.

Accessory Power Ports. This D-Box features a myriad of LEMO and Fischer compatible power ports as well as a port to power the (not included). See the list or video below for a complete overview of the accessory power options:

D-Box Accessory Port Breakdown:

• 7-pin LEMO compatible – EXT Port
  – Replica of connector on rear of camera
  – Maintains functionality of external communication, R/S, and power

• 2-pin LEMO compatible – 12V Unregulated
  – ARRI standard wiring

• 2-pin LEMO compatible – 12V Unregulated
  – ARRI standard wiring

• 3-pin Fischer – 24V Regulated
  – Regulator built in to convert battery voltage to 24V
  – Maximum 3A shared between slot 4/5

• 3-pin Fischer – 24V Regulated
  – Regulator built in to convert battery voltage to 24V
  – Maximum 3A shared between slot 4/5

• 4-pin Mini XLR – 12V Input

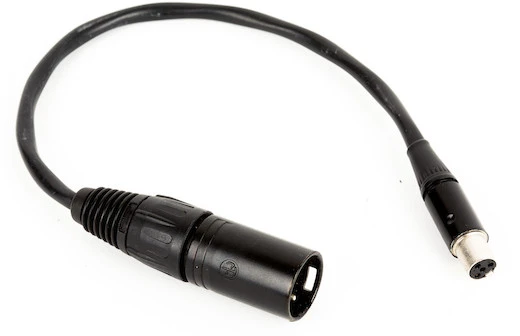

  – Hot swappable power input with included 8 inch pigtail cable for standard 4-pin XLR (12V nominal)
  – Capable of providing power to accessories and camera without brick battery attached
