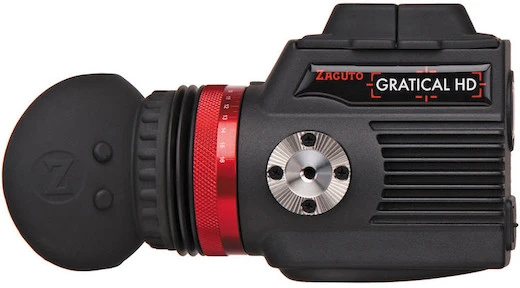

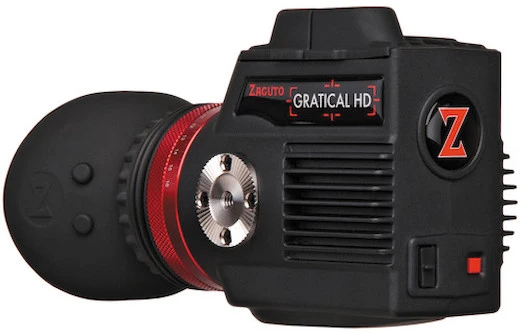

The Zacuto Gratical HD Micro OLED EVF is a top of the line camera viewfinder with both and connections. Key features include:
-
Advanced signal conversion
-
Micro OLED with 10,000:1 contrast ratio
-
Extensive video-processing options
-
Four-hour battery life
Advance Signal Conversion. A few high-end monitoring products offer cross conversion between SDI and HDMI inputs/outputs. This viewfinder doesn’t stop there; it can also output unique LUTs independent of the ones being used for monitoring!
Micro OLED Display. This high pixel density screen uses organic LED technology to produce an extreme contrast ratio of 10,000:1!
Video-Processing Options. Custom scaling, vectorscope, red line peaking, waveform (3D), false color, RGB, saturation, brightness, contrast, histogram (RGB/Luma), audio meters, test patterns (color bars/Macbeth), LUT import and creation, and frame storing.
Battery Life. The viewfinder runs about four hours on a single battery.
| Brand |
Zacuto |
| Camera Support Type |
Viewfinder |
| Display |
Micro OLED 0.61″ 1280×720 |
| Inputs/Outputs |
Video Outputs
|
| Item Type |
Monitoring and Accessory |
| Monitoring Type |
Viewfinder |
| Mounting Options |
1x 1/4″-20 Rosette and 2x 1/4″-20 thread |
| Supported Frame Rates |
23.98p, 23.98PsF, 24p, 24PsF, 25p, 25PsF, 29.97p, 29.97PsF, 30p, 30PsF, 50i, 50p, 59.94i, 60i, and 60p |
